Double Side Hole Punching Back Supermarket Shelf

Send Inquiry
Double Side Hole Punching Back Supermarket Shelf
Details
LENGTH:900mm /1000mm /1200mm /customize
WIDTH:400mm/450mm /500mm /550mm /600mm/customize
HEIGHT:1600mm /1800mm /2000mm /2200mm /2400mm /customize
UPRIGHT:30*60mm /40*60mm /30*80mm /40*80mm
LAYER THICKNESS: 0.5~1.0mm /customize
Category
Supermarket Gondola Shelves
Share to
Description

Our heavy-duty retail shelving is built for high-traffic supermarkets and stores. Made from strong Q195 carbon steel, it offers durability and large capacity. The double-sided version is perfect for central aisles, maximizing display space from both sides. The single-sided option fits neatly against walls. Its flexible design adapts easily to store layout changes, providing a reliable and efficient product display solution.

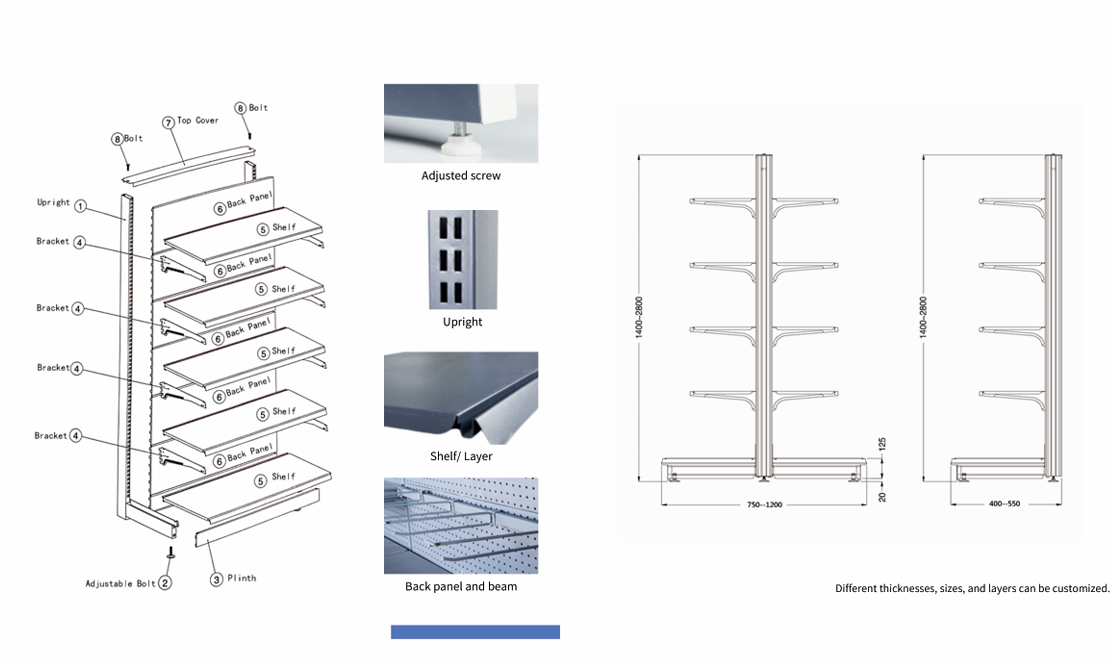

Specifications





LENGTH 900mm /1000mm /1200mm /customize
WIDTH 400mm/450mm /500mm /550mm /600mm/customize
HEIGHT 1600mm /1800mm /2000mm /2200mm /2400mm /customize
UPRIGHT 30*60mm /40*60mm /30*80mm /40*80mm
LAYER THICKNESS 0.5~1.0mm /customize
BACK PANEL THICKNESS 0.5~0.8mm /customize
BRACKET THICKNESS 2.0~3.0mm /customize
COLOR WHITE /GRAY /customize


Quality Control

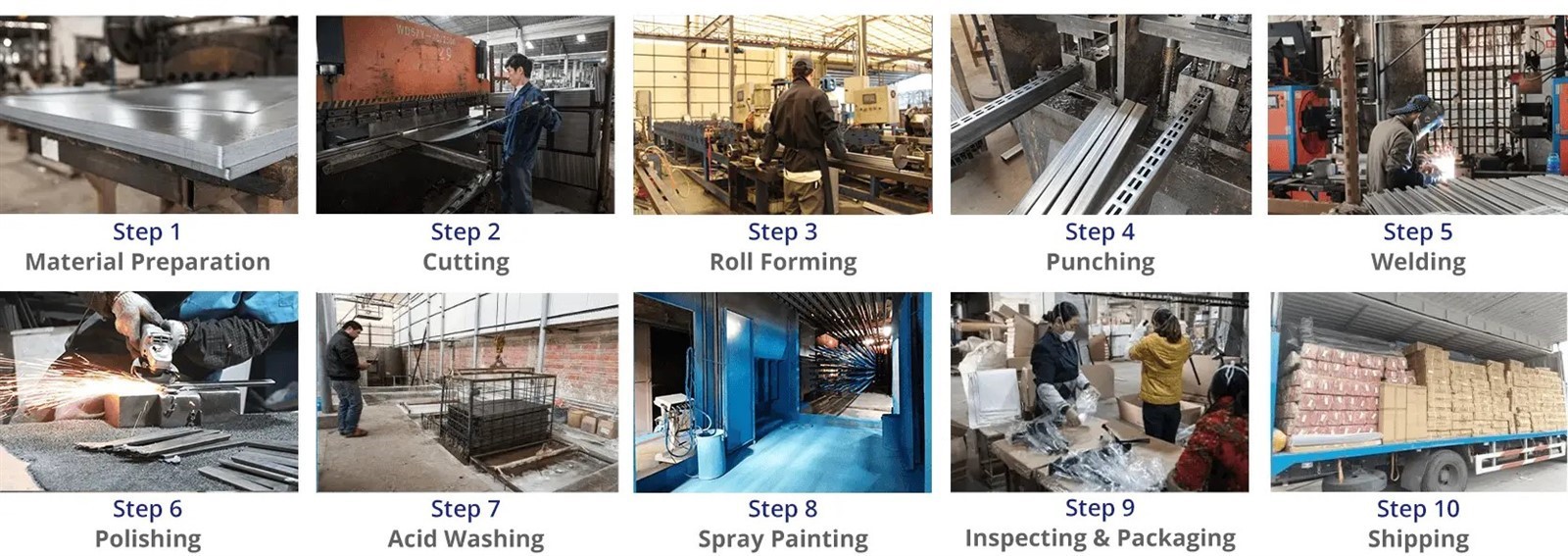

Our shelves are manufactured with premium Q195 carbon steel and advanced production techniques, ensuring exceptional durability and load-bearing capacity. Our production procedure: material preparation – cutting - roll forming – punching – welding – polishing – acid washing – spray painting. We implement strict quality control throughout the process. Each unit is individually inspected and key parameters are measured before packaging to guarantee consistency, stability, and reliable performance for easy installation and long-term use.






CUSTOMER SUPPORT & AFTER-SALES SERVICE





We are committed to ensuring a smooth and satisfactory experience from delivery to daily use. Our shelves are carefully packaged in export-grade cartons, with upright columns additionally protected by bubble wrap to prevent damage during transit. You may choose direct factory loading or shipment to your designated warehouse.

If you receive products with quality defects or size discrepancies, we offer free replacements or a refund. Detailed installation guides are available for easy setup. We also provide ongoing support for accessory orders, helping you maintain and expand your shelving system effortlessly. Your satisfaction is our priority.


FAQ



Q: Can we get a sample?

A: Yes, samples are available at any time. We charge some sample cost and will return it during the next order.

Q: What is your MOQ (minimum order quantity)?

A: 10 sets, we would say a good quantity comes with a good price.

Q: Could I order products in a special size and color?

A: OEM is welcomed, you can supply your own design or you can make a change on our design including size, material, hardware and others.

Q: What is your delivery time?

A: In general, within 15 days. It also depends on the order quantity and shelving design.

Q: What are your Payment terms?

A: Payment terms: 30% of the deposit upon signing the PI, and the balance will be cleared before delivery.
